Description
Technical Specifications of Foley Balloon Catheter:
- Types Available: 2-Way and 3-Way Foley Balloon Catheters
- Size : 8 FG – 24 FG
- Patient: Kids and Adults
- Length options: standard length of 400–450 mm
- Type of sterilisation: disposable and pre-sterilized
- Use: Short-term and long-term urinary drainage
What is Foley balloon catheter used for?
Foley balloon catheter is inserted through the urethra into the bladder to drain urine when a patient can not urinate on their own. it has following application:
- Urinary retention due to prostate enlargement
- Renal function tests – to accurately measure urine output in hospitals or home care setting.
- Recovery After surgery
- Prolonged immobilisation
- Intensive Care Monitoring
- The third channel on a 3-way catheter is used for continuous bladder irrigation, or flushing the bladder with sterile saline or for administering medication directly into the bladder
Insertion & care for a Foley balloon catheter:
- The genital area is cleaned with an antiseptic before insertion.
- Numbing gel or lubricant is used to ease discomfort.
- Catheter is theninsterd through urethra into bladder.
- The retention balloon is filled with sterile water once in place to hold the catheter in place.
- Urine runs through a separate tube into a collection bag.
- Catheter remains attached to a closed drainage system for the duration of use
- Collection bag below bladder level to avoid back flow

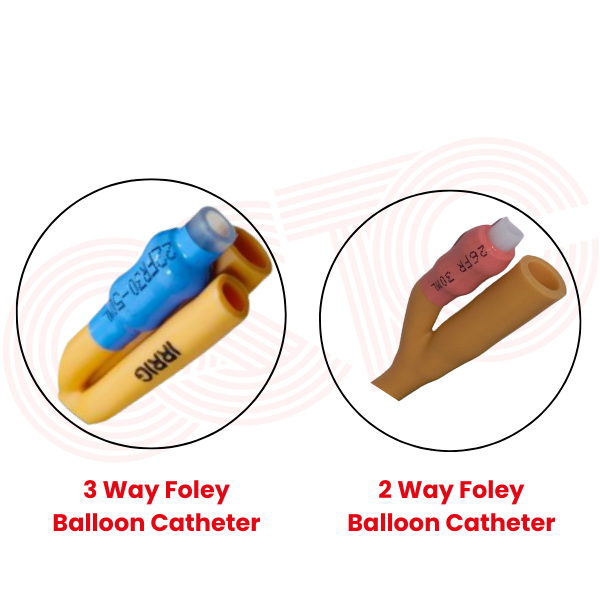

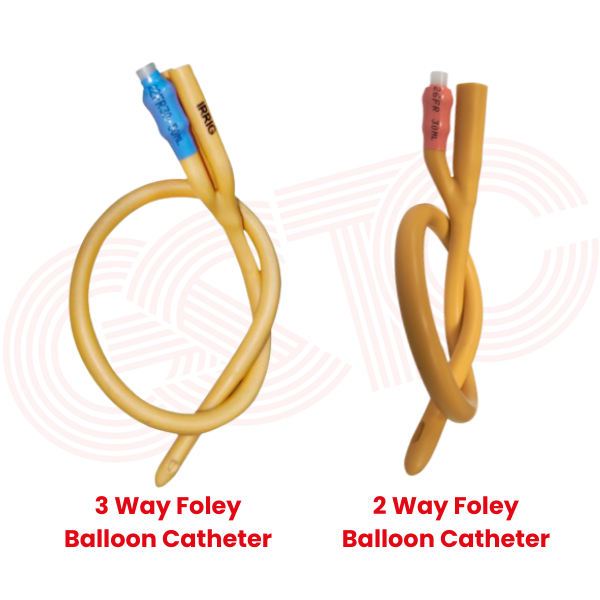

Key Differences – 2 Way vs 3 Way Foley balloon Catheters
| Feature | 2-Way Foley Catheter | 3-Way Foley Catheter |
|---|---|---|
| Number of Lumens | 2 | 3 |
| Drainage Lumen | ✔ Yes | ✔ Yes |
| Balloon Inflation Lumen | ✔ Yes | ✔ Yes |
| Irrigation Lumen | ✖ No | ✔ Yes |
| Primary Use | Routine urine drainage | Drainage + bladder irrigation |
| Common Applications | Urinary retention, monitoring | Post-operative care, hematuria |
Design Features of Foley Balloon catheter
2-Way Foley Balloon catheter
- 1st (Drainage) lumen – urine flow
- 2nd (Inflation) lumen – balloon retention

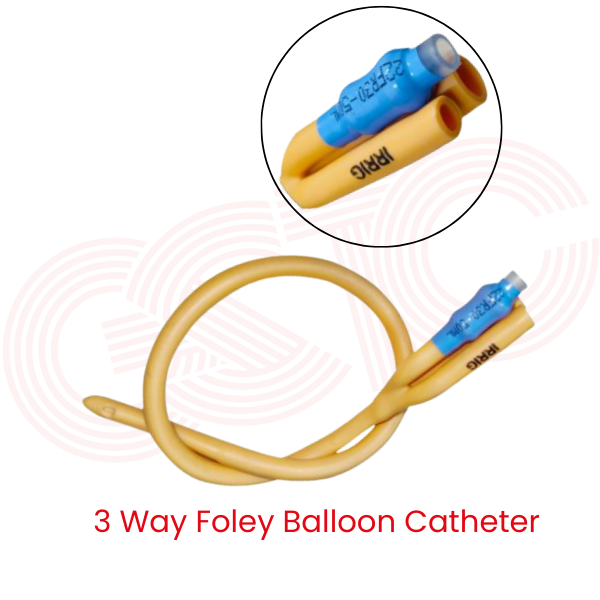

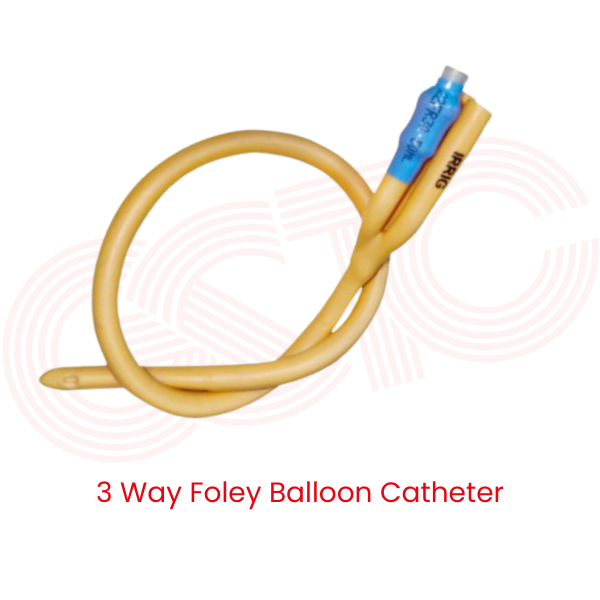

3-Way Foley Balloon catheter
- 1st (Drainage) lumen used for urine flow
- 2nd (Inflation) lumen or also called Balloon inflation lumen
- 3rd (Irrigation lumen) used for bladder irrigation or flushing
Balloon System
- Near the catheter tip, a symmetrical inflatable balloon
- Inflated with saline or sterile water
- Depending on size, balloon capacities range from 1.5 cc to 50 cc.
Size & Color Coding of Foley Balloon catheter:
| Size (FG) | Color | Balloon Capacity |
|---|---|---|
| 14 FG | Green | 15–30 cc |
| 16 FG | Orange | 30–50 cc |
| 18 FG | Red | 30–50 cc |
| 20 FG | Yellow | 30–50 cc |
| 22 FG | Violet | 30–50 cc |
| 24 FG | Blue | 30–50 cc |
| 26 FG | Pink | 30–50 cc |
Certifications:
Foley balloon catheters manufactured and exported by GSTC are manufactured under the following certifications, in line with the applicable ISO standards:
- ISO 9001:2015 (Quality Management Systems) — Certificate No. IN240413013, certified 07 April 2026, valid until 15 April 2027
- ISO 13485:2016 (Medical Devices Quality Management) — Certificate No. IN240413007, certified 07 April 2026, valid until 14 April 2027
- ISO 20696:2018 — Sterile urethral catheters for single use
- WHO-GMP — Certificate No. IN9690U-2023, issued 05 October 2023, valid through 04 October 2026
Why Choose Us?
Looking for a trusted Foley balloon catheter manufacturer and exporter from India? GSTC has been a trusted manufacturer and exporter since 1959 — 6 decades of experience.
- India’s Top Exporter: GSTC is India’s leading manufacturer and trusted exporter of Medical Disposable & Urology, with over 6 Decades of experience, serving clients across 60+ countries.
- Unmatched Quality: Our Foley balloon catheters are manufactured using 100% latex-free, biocompatible materials with secure inflation valves, eliminating allergy risk and prioritizing patient safety.
- Timely Delivery: We are leading Foley Balloon Catheter & other Medical Equipments Manufacturers & Exporters , ensuring your orders are delivered on time.
