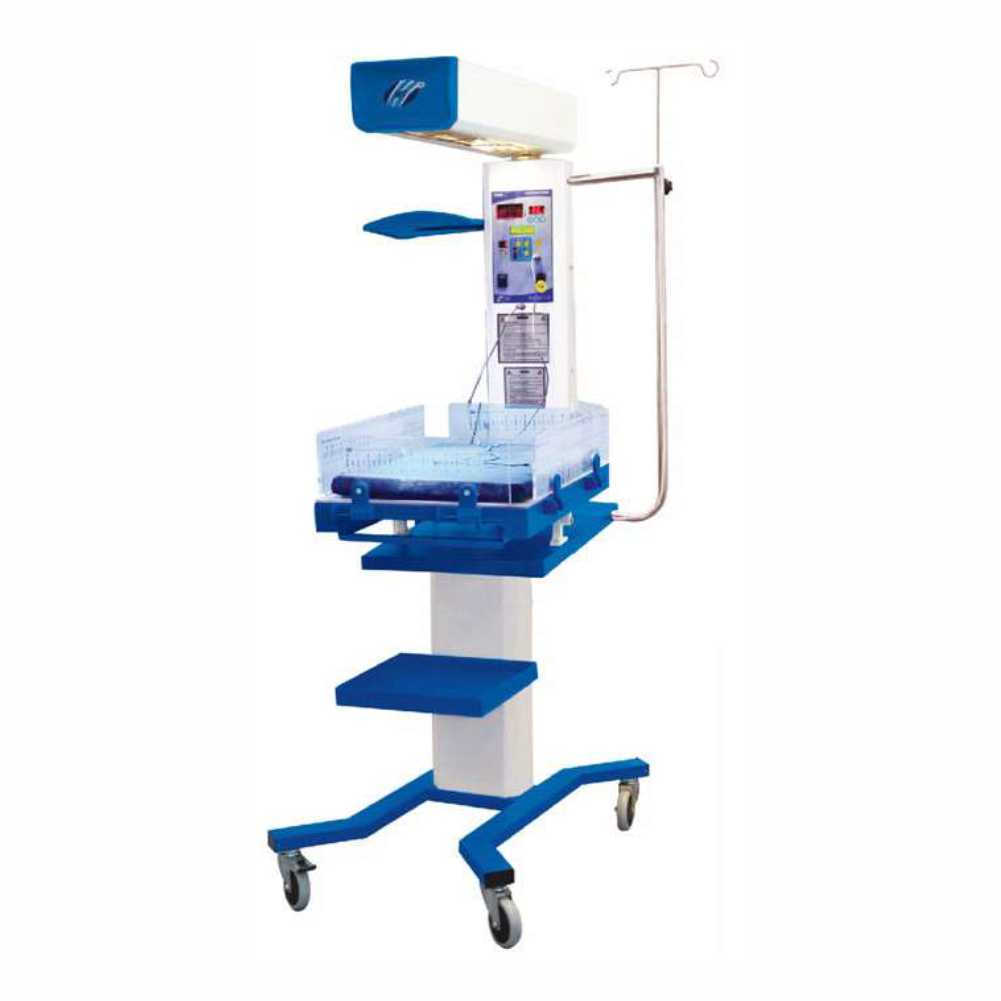

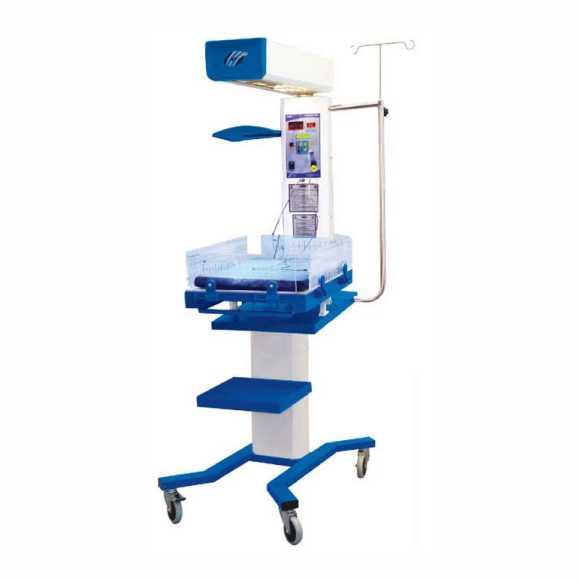

Infant Radiant Warmer

The digital, microprocessor-based controller comes with a full spectrum of features. Two function control modes provide the clinician more flexibility while optimizing the thermal environment. Dual digital temperature displays allow easy visualization of patient temperature and set point.

Technical Specification:

Height 1850mm

Length 1050mm

Width 650mm

Power Supply 220V/50Hz

Heater Power 650 Watts

Fuse 5 Amp



Control Panel

Infant Radiant Warmer comes complete with automatic manual /baby (Servo)/Air modes. In addition, the Skin/Air temperature display is larger than other set temperature displays. The skin temperature display can be converted from °C to °F by the push of a button. A big LCD is provided for more information and visualizations of the heater power in manual and servo modes. A full complement of alarms provides safety and convenience, with both audible and visual indicators in the event of :

High Temp./ Low Temp.  System Fail  Probe Failure  Power Failure  Timer  Heater fail / ON (Optional) only visual alarm provided.

Heater Assembly

The Parabolic heater assembly located above the center of the support structure consists of an integral examination light and a 650 watts heating system (Silica or quartz /Ceramic Heater) for quick warming and even distribution of heat on the baby bed. The heater can be swiveled in either direction for taking X-rays and doing procedures.

Air Mode (Optional)

The system comes with an air sensor. This is added security cover with the exclusive feature of switching OFF the heater in case the AIR temperature goes above 39°C irrespective of what the skin temperature is at the time of the event.

Manual Mode

The system automatically starts heating from 40% in manual mode and the same can be changed through settings up to 100%. The system automatically converts from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.

Baby Bed

The spacious baby bed incorporates easy drop-down/fold-down glasses for maximum access to the patient.

Optional: An X-Ray facility is provided below the baby bed for taking X-rays of the baby without disturbing it.

Additional Features:

If needed the unit can be programmed by the user itself for any of the following features:

(a) Count Up / down Timer.

(b) Check the baby Alarm.

(c) Pre warming mode.



The system is fitted with 4″ high-quality castors having brakes in front 2 castors. Antistatic castors can be fitted as an option for further safety in lieu of the standard castors.

Optional: The system comes with a check baby alarm ( 1 — 120min.)
